Stud And Flange Nut Using In The Battery

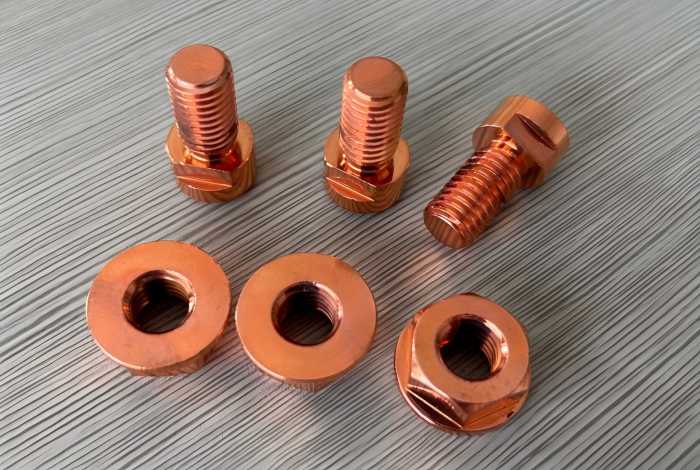

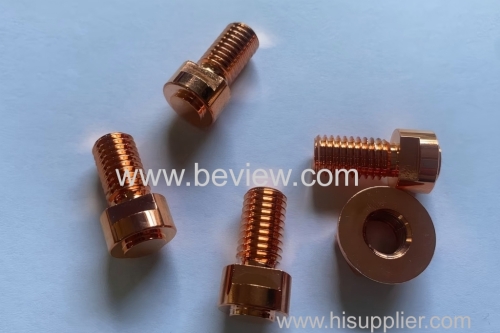

Stud and Flange Nut using in the battery

Studs and flange nuts are used with batteries, especially in automotive and industrial applications, to provide a secure connection point for battery cables, enabling the transfer of electrical current. Studs are essentially bolts that screw into a special battery terminal or a threaded adapter, and the flange nut then secures the battery cable to the stud. This type of connection is common for top-post batteries with pre-threaded studs and also for side-terminal automotive batteries, where a stud is inserted into the side terminal post.

How they are used:

• For Stud-Top Batteries:




• The battery has a pre-installed threaded stud protruding from the top.

• A battery cable with a ring terminal is placed over the stud.

• A flange nut, often a serrated stainless steel one for better grip and corrosion resistance, is then threaded onto the stud to secure the cable.




• For Side-Terminal Batteries:




• The battery features side-mounted terminals that have holes or threaded inserts.

• A stud, often a bolt-like adapter with a threaded end, is inserted into the terminal post.

• The battery cable is attached to this stud, and then a nut (which can be a flange nut) is used to tighten and secure the cable to the stud.







Why they are used:




• Secure Electrical Connection:

  The combination of the stud and flange nut creates a strong and stable electrical connection, which is vital for the reliable performance of the vehicle or device.

• Vibration Resistance:

  Flange nuts often have a serrated base that helps to lock them in place, reducing the risk of them loosening under vibration, a common issue in vehicles.

• Durability:

  Many battery studs and nuts are made from stainless steel, which provides good corrosion resistance and long-term durability.

• Versatility:

  This system allows for connecting various accessories or charging equipment directly to the battery terminals.

•
